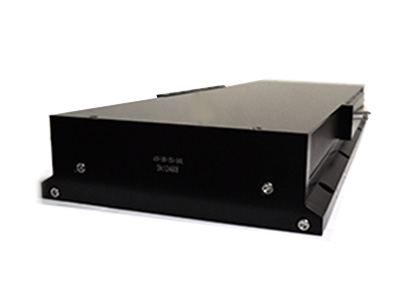

ASRC SERIES
循環式Cross Roller軌道單軸，在長行程應用較省空間，線性馬達驅動，光學尺回授，可以擁有高於ASR SERIES的精度，硬式上防塵蓋，側邊防塵帶阻力均勻，也可以加正壓防塵，或側邊金屬帶加磁力密封防塵，這類平台相同寬度的兩個單軸，或相鄰寬度的兩個單軸可以直接疊成X-Y。
我們製做範圍限制在寬度400mm以下，行程1000mm以下，行程每100mm一個級距

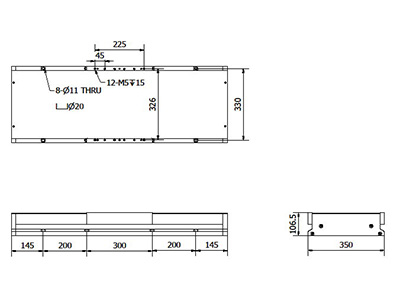

| ASRC350-500 | ||
|---|---|---|
| Signle Axis Circulation Cross Roller Linear Motor Stage | ||
| Travel | mm | 500 |
| Continuous speed(1) | mm/sec | 200 |
| Max. Speed (1) | mm/sec | 500 |
| Resolution | μm | 0.1 |
| Repeatibility | counts | ±2 |
| Max. acceleration(1) | m/s2 | 10 |
| straightness/flatness | μm/50mm | ±2 |
| Linear Motor Peak Force | N | 577 |
| Linear Motor Continuous Current | Amps | 2.3/4.6 |
| (1)Max. Speed may be limited by system data rate and system resolution. | ||
| 型式 | 寬度 | 行程 | 線長 | 備註 |
|---|---|---|---|---|
| ASRC | 250 | 300 | 3M | AT:Air Tube option |
| 350 | 400 | 5M | CS:option Linear Eucoder Cable for Z Axis | |
| 500 | CM:option Motor cable for Z Axis | |||
| 600 |
