ASR SERIES
循環式軌道單軸，在長行程應用較省空間，線性馬達或螺桿驅動，光學尺回授，硬式 上防塵蓋，側邊防塵帶阻力均勻，也可以加正壓防塵，或側邊金屬帶加磁力密封防塵，這類平台我們製做範圍限制在寬度400mm以下，長度1000mm以下，行程每100mm一個級距。

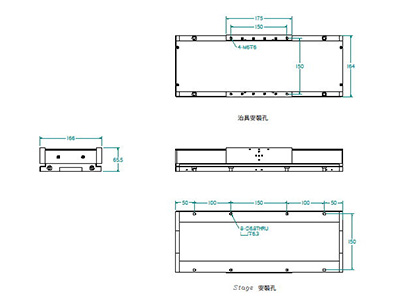

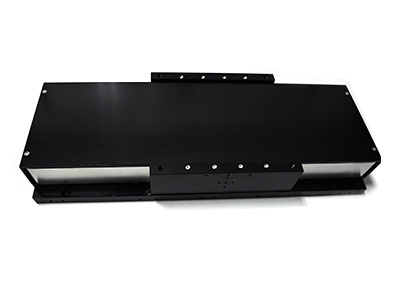

| ASR166-220 | ||
|---|---|---|
| Signle Axis Circulating Braring Linear Motor Stage | ||
| Open-frame | mm | |
| Travel | mm | 220 |
| Continuous speed(1) | mm/sec | 200 |
| Max. Speed (1) | mm/sec | 250 |
| Resolution | μm | 0.1 |
| Repeatibility | counts | ±3 |
| Max. acceleration(1) | m/s2 | 10 |
| straightness/flatness | μm | ±5 |
| Linear Motor Peak Force | N | 176 |
| Linear Motor Continuous Current | Amps | 4 |
| (1)Max. Speed may be limited by system data rate and system resolution. | ||
型式 |
驅動方式 |
寬度 |
行程 |
備註 |
|---|---|---|---|---|
ASR－ |
SB5－ |
225－ |
400 |
L:外加封閉式光學尺 |
SB5:伺服馬達＋螺桿驅動 |
250 |
500 |
||
LM:線馬驅動 |
350 |
600 |
| 馬達線色 |
|---|
| M1：黃／橙 |
| M2：藍／綠 |
| M3：棕／黑 |
| PE：隔離網 |
| 光學尺接頭 | |||
|---|---|---|---|
| 15 PIN D-Sub/Male | |||
| 1 | Right Limit＋ | 9 | Ground |
| 2 | Ground | 10 | Left Limit＋ |
| 3 | Right Limit－ | 11 | Left Limit－ |
| 4 | Index－ | 12 | Index＋ |
| 5 | B－ | 13 | B＋ |
| 6 | A－ | 14 | A＋ |
| 7 | 5V | 15 | Do not connect |
| 8 | 5V | ||
